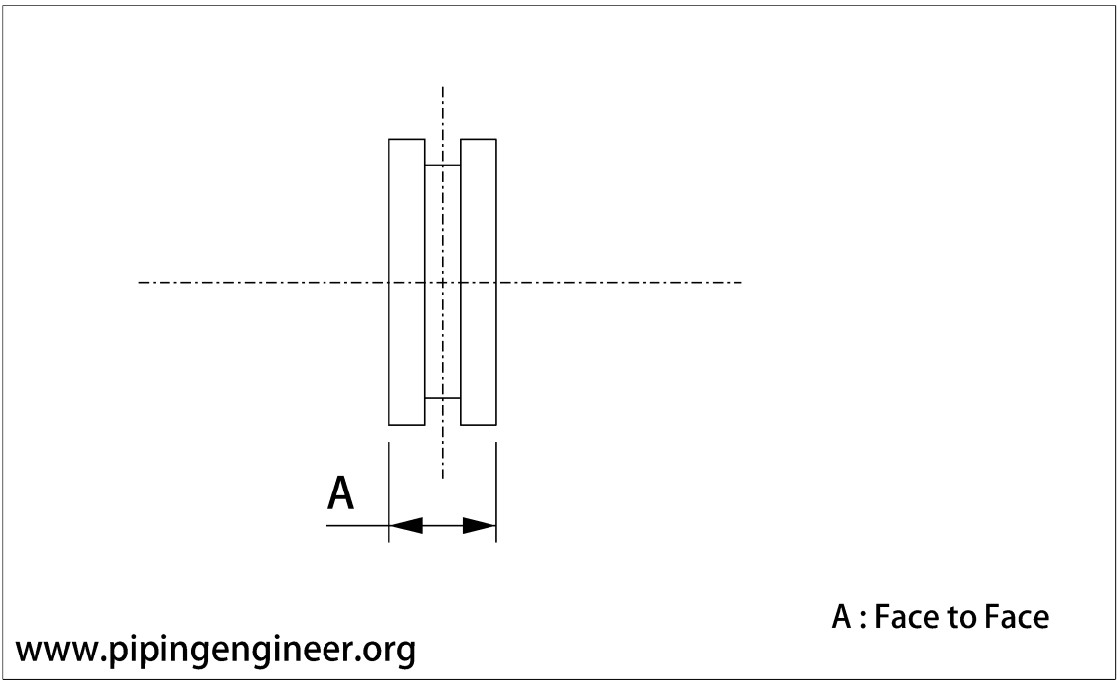

150# Bonnetless Knife Gate Valve Dimensions
| NPS Valve Size | A : Face to Face Valve Length |
|---|---|
| 2 | 1.88 |
| 3 | 2.00 |
| 4 | 2.00 |
| 5 | 2.25 |
| 6 | 2.25 |
| 8 | 2.75 |
| 10 | 2.75 |
| 12 | 3.00 |
| 14 | 3.00 |
| 16 | 3.50 |
| 18 | 3.50 |
| 20 | 4.50 |
| 24 | 4.50 |
| NPS Valve Size | A : Face to Face Valve Length |
The Piping Engineering World
Piping Articles and Tools by Jitendra Surve.
Inch Dimensions of Bonnetless Knife Gate Valves as per ASME B16.10
