Inch Dimensions of Threaded Flanges as per ASME B16.5

150# | 300# | 400# | 600# | 900# | 1500# | 2500#

150# Threaded Flange Dimensions as per ASME B16.5

150# Flange Body Dimensions

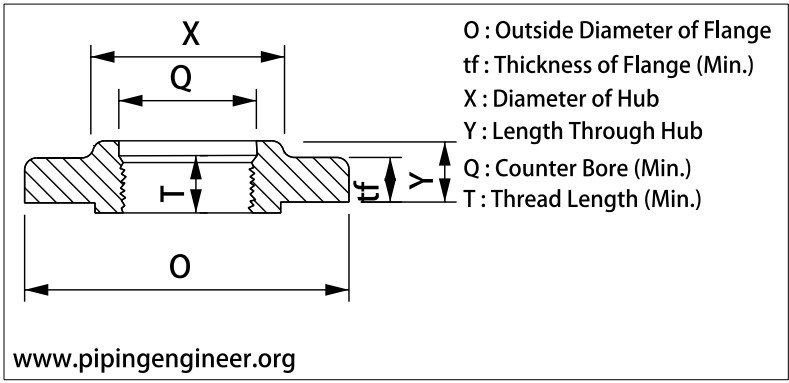

NPS	O Flange OD	tf Flange Thickness	X Hub Dia.	Y Hub Length	T Thread Length	Q (Min.) Counter Bore
1/2	3.50	0.38	1.19	0.56	0.62	0.93
3/4	3.88	0.44	1.50	0.56	0.62	1.14
1	4.25	0.50	1.94	0.62	0.69	1.41
1-1/4	4.62	0.56	2.31	0.75	0.81	1.75
1-1/2	5.00	0.62	2.56	0.81	0.88	1.98
2	6.00	0.69	3.06	0.94	1.00	2.50
2-1/2	7.00	0.81	3.56	1.06	1.12	3.00
3	7.50	0.88	4.25	1.12	1.19	3.63
3-1/2	8.50	0.88	4.81	1.19	1.25	4.13
4	9.00	0.88	5.31	1.25	1.31	4.63
5	10.00	0.88	6.44	1.38	1.44	5.69
6	11.00	0.94	7.56	1.50	1.56	6.75
8	13.50	1.06	9.69	1.69	1.75	8.75
10	16.00	1.12	12.00	1.88	1.94	10.88
12	19.00	1.19	14.38	2.12	2.19	12.94
14	21.00	1.31	15.75	2.19	2.25	14.19
16	23.50	1.38	18.00	2.44	2.50	16.19
18	25.00	1.50	19.88	2.62	2.69	18.19
20	27.50	1.62	22.00	2.81	2.88	20.19
24	32.00	1.81	26.12	3.19	3.25	24.19

150# Bolts Template

NPS	BCD Bolt Circle Dia.	BHD Bolt Hole Dia	BOLTS Number of Bolts	BD Dia. Of Bolt	SBL RF Stud Bolt Length (RF)	SBL RJ Stud Bolt Length (RJ)	MBL RF Machine Bolt Length (RF)
1/2	2.38	5/8	4	1/2	2.25	NA	2
3/4	2.75	5/8	4	1/2	2.5	NA	2
1	3.12	5/8	4	1/2	2.5	3.00	2.25
1-1/4	3.50	5/8	4	1/2	2.75	3.25	2.25
1-1/2	3.88	5/8	4	1/2	2.75	3.25	2.5
2	4.75	3/4	4	5/8	3.25	3.75	2.75
2-1/2	5.50	3/4	4	5/8	3.5	4.00.	3
3	6.00	3/4	4	5/8	3.5	4.00	3
3-1/2	7.00	3/4	8	5/8	3.5	4.00	3
4	7.50	3/4	8	5/8	3.5	4.00	3
5	8.50	7/8	8	3/4	3.75	4.25	3.25
6	9.50	7/8	8	3/4	4	4.50	3.25
8	11.75	7/8	8	3/4	4.25	4.75	3.5
10	14.25	1	12	7/8	4.5	5.00	4
12	17.00	1	12	7/8	4.75	5.25	4
14	18.75	1-1/8	12	1	5.25	5.75	4.5
16	21.25	1-1/8	16	1	5.25	5.75	4.5
18	22.75	1-1/4	16	1-1/8	5.75	6.25	5
20	25.00	1-1/4	20	1-1/8	6.25	6.75	5.5
24	29.50	1-3/8	20	1-1/4	6.75	7.25	6

150# | 300# | 400# | 600# | 900# | 1500# | 2500#

300# Threaded Flange Dimensions as per ASME B16.5

300# Flange Body Dimensions

NPS	O Flange OD	tf Flange Thickness	X Hub Dia.	Y Hub Length	T Thread Length	Q (Min.) Counter Bore
1/2	3.75	0.50	1.50	0.81	0.62	0.93
3/4	4.62	0.56	1.88	0.94	0.62	1.14
1	4.88	0.62	2.12	1.00	0.69	1.41
1-1/4	5.25	0.69	2.50	1.00	0.81	1.75
1-1/2	6.12	0.75	2.75	1.13	0.88	1.98
2	6.50	0.81	3.31	1.25	1.12	2.50
2-1/2	7.50	0.94	3.94	1.44	1.25	3.00
3	8.25	1.06	4.62	1.63	1.25	3.63
3-1/2	9.00	1.12	5.25	1.69	1.44	4.13
4	10.00	1.19	5.75	1.82	1.44	4.63
5	11.00	1.31	7.00	1.94	1.69	5.69
6	12.5O	1.38	8.12	2.00	1.81	6.75
8	15.00	1.56	10.25	2.38	2.00	8.75
10	17.50	1.81	12.62	2.56	2.19	10.88
12	20.50	1.94	14.75	2.82	2.38	12.94
14	23.00	2.06	16.75	2.94	2.50	14.19
16	25.50	2.19	19.00	3.19	2.69	16.19
18	28.00	2.31	21.00	3.44	2.75	18.19
20	30.50	2.44	23.12	3.69	2.88	20.19
24	36.00	2.69	27.62	4.13	3.25	24.19

300# Bolts Template

NPS	BCD Bolt Circle Dia.	BHD Bolt Hole Dia	BOLTS Number of Bolts	BD Dia. Of Bolt	SBL RF Stud Bolt Length (RF)	SBL RJ Stud Bolt Length (RJ)	MBL RF Machine Bolt Length (RF)
1/2	2.62	5/8	4	1/2	2.5	3.00	2.25
3/4	3.25	3/4	4	5/8	3	3.50	2.5
1	3.50	3/4	4	5/8	3	3.50	2.5
1-1/4	3.88	3/4	4	5/8	3.25	3.75	2.75
1-1/2	4.50	7/8	4	3/4	3.5	4.00	3
2	5.00	3/4	8	5/8	3.5	4.00	3
2-1/2	5.88	7/8	8	3/4	4	4.50	3.25
3	6.62	7/8	8	3/4	4.25	4.75	3.5
3-1/2	7.25	7/8	8	3/4	4.25	5.00	3.75
4	7.88	7/8	8	3/4	4.5	5.00	3.75
5	9.25	7/8	8	3/4	4.75	5.25	4.25
6	10.62	7/8	12	3/4	4.75	5.50	4.25
8	13.00	1	12	7/8	5.5	6.00	4.75
10	15.25	1-1/8	16	1	6.25	6.75	5.5
12	17.75	1-1/4	16	1-1/8	6.75	7.25	5.75
14	20.25	1-1/4	20	1-1/8	7	7.50	6.25
16	22.50	1-3/8	20	1-1/4	7.5	8.00	6.5
18	24.75	1-3/8	24	1-1/4	7.75	8.25	6.75
20	27.00	1-3/8	24	1-1/4	8	8.75	7.25
24	32.00	1-5/8	24	1-1/2	9	10.00	8

150# | 300# | 400# | 600# | 900# | 1500# | 2500#

400# Threaded Flange Dimensions as per ASME B16.5

400# Flange Body Dimensions

NPS	O Flange OD	tf Flange Thickness	X Hub Dia.	Y Hub Length	T Thread Length	Q (Min.) Counter Bore
1/2	3.75	0.56	1.50	0.88	0.62	0.38
3/4	4.62	0.62	1.88	1.00	0.62	0.44
1	4.88	0.69	2.12	1.06	0.69	0.50
1-1/4	5.25	0.81	2.50	1.12	0.81	0.56
1-1/2	6.12	0.88	2.75	1.25	0.88	0.62
2	6.50	1.00	3.31	1.44	1.12	0.69
2-1/2	7.50	1.12	3.94	1.62	1.25	0.75
3	8.25	1.25	4.62	1.81	1.38	0.81
3-1/2	9.00	1.38	5.25	1.94	1.56	4.13
4	10.00	1.38	5.75	2.00	1.44	4.63
5	11.00	1.50	7.00	2.12	1.69	5.69
6	12.50	1.62	8.12	2.25	1.81	6.75
8	15.00	1.88	10.25	2.69	2.00	8.75
10	17.50	2.12	12.62	2.88	2.19	10.88
12	20.50	2.25	14.75	3.12	2.38	12.94
14	23.00	2.38	16.75	3.31	2.50	14.19
16	25.50	2.50	19.00	3.69	2.69	16.19
18	28.00	2.62	21.00	3.88	2.75	18.19
20	30.50	2.75	23.12	4.00	2.88	20.19
24	36.00	3.00	27.62	4.50	3.25	24.19

400# Bolts Template

NPS	BCD Bolt Circle Dia.	BHD Bolt Hole Dia	BOLTS Number of Bolts	BD Dia. Of Bolt	SBL RF Stud Bolt Length (RF)	SBL RJ Stud Bolt Length (RJ)	MBL RF Machine Bolt Length (RF)
1/2	2.62	5/8	4	1/2	3	2.75	3
3/4	3.25	3/4	4	5/8	3.5	3.25	3.5
1	3.50	3/4	4	5/8	3.5	3.25	3.5
1-1/4	3.88	3/4	4	5/8	3.75	3.50	3.75
1-1/2	4.50	7/8	4	3/4	4.25	4.00	4.25
2	5.00	3/4	8	5/8	4.25	4.00	4.25
2-1/2	5.88	7/8	8	3/4	4.75	4.50	4.75
3	6.62	7/8	8	3/4	5	4.75	5
3-1/2	7.25	1	8	7/8	5.5	5.25	5.5
4	7.88	1	8	7/8	5.5	5.25	5.5
5	9.25	1	8	7/8	5.75	5.25	5.75
6	10.62	1	12	7/8	6	5.75	6
8	13.00	1-1/8	12	1	6.75	6.50	6.75
10	15.25	1-1/4	16	1-1/8	7.5	7.25	7.5
12	17.75	1-3/8	16	1-1/4	8	7.75	8
14	20.25	1-3/8	20	1-1/4	8.25	8.00	8.25
16	22.50	1-1/2	20	1-3/8	8.75	8.50	8.75
18	24.75	1-1/2	24	1-3/8	9	8.75	9
20	27.00	1-5/8	24	1-1/2	9.5	9.25	9.75
24	32.00	1-7/8	24	1-3/4	10.5	10.25	11

150# | 300# | 400# | 600# | 900# | 1500# | 2500#

600# Threaded Flange Dimensions as per ASME B16.5

600# Flange Body Dimensions

NPS	O Flange OD	tf Flange Thickness	X Hub Dia.	Y Hub Length	T Thread Length	Q (Min.) Counter Bore
1/2	3.75	0.56	1.50	0.88	0.62	0.93
3/4	4.62	0.62	1.88	1.00	0.62	1.14
1	4.88	0.69	2.12	1.06	0.69	1.41
1-1/4	5.25	0.81	2.50	1.12	0.81	1.75
1-1/2	6.12	0.88	2.75	1.25	0.88	1.99
2	6.50	1.00	3.31	1.44	1.12	2.50
2-1/2	7.50	1.12	3.94	1.62	1.25	3.00
3	8.25	1.25	4.62	1.81	1.38	3.63
3-1/2	9.00	1.38	5.25	1.94	1.56	4.13
4	10.75	1.50	6.00	2.12	1.62	4.63
5	13.00	1.75	7.44	2.38	1.88	5.69
6	14.00	1.88	8.75	2.62	2.00	6.75
8	16.50	2.19	10.75	3.00	2.25	8.75
10	20.00	2.50	13.50	3.38	2.56	10.88
12	22.00	2.62	15.75	3.62	2.75	12.94
14	23.75	2.75	17.00	3.69	2.88	14.19
16	27.00	3.00	19.50	4.19	3.06	16.19
18	29.25	3.25	21.50	4.62	3.12	18.19
20	32.00	3.50	24.00	5.00	3.25	20.19
24	37.00	4.00	28.25	5.50	3.62	24.19

600# Bolts Template

NPS	BCD Bolt Circle Dia.	BHD Bolt Hole Dia	BOLTS Number of Bolts	BD Dia. Of Bolt	SBL RF Stud Bolt Length (RF)	SBL RJ Stud Bolt Length (RJ)	MBL RF Machine Bolt Length (RF)
1/2	2.62	5/8	4	1/2	3	2.75	3
3/4	3.25	3/4	4	5/8	3.5	3.25	3.5
1	3.50	3/4	4	5/8	3.5	3.25	3.5
1-1/4	3.88	3/4	4	5/8	3.75	3.50	3.75
1-1/2	4.50	7/8	4	3/4	4.25	4.00	4.25
2	5.00	3/4	8	5/8	4.25	4.00	4.25
2-1/2	5.88	7/8	8	3/4	4.75	4.50	4.75
3	6.62	7/8	8	3/4	5	4.75	5
3-1/2	7.25	1	8	7/8	5.5	5.25	5.5
4	8.50	1	8	7/8	5.75	5.50	5.75
5	10.50	1-1/8	8	1	6.5	6.25	6.5
6	11.50	1-1/8	12	1	6.75	6.50	6.75
8	13.75	1-1/4	12	1-1/8	7.5	7.25	7.75
10	17.00	1-3/8	16	1-1/4	8.5	8.25	8.5
12	19.25	1-3/8	20	1-1/4	8.75	8.50	8.75
14	20.75	1-1/2	20	1-3/8	9.25	9.00	9.25
16	23.75	1-5/8	20	1-1/2	10	9.75	10
18	25.75	1-3/4	20	1-5/8	10.75	10.50	10.75
20	28.50	1-3/4	24	1-5/8	11.25	11.00	11.5
24	33.00	2	24	1-7/8	13	12.75	13.25

150# | 300# | 400# | 600# | 900# | 1500# | 2500#

900# Threaded Flange Dimensions as per ASME B16.5

900# Flange Body Dimensions

NPS	O Flange OD	tf Flange Thickness	X Hub Dia.	Y Hub Length	T Thread Length	Q (Min.) Counter Bore
1/2	4.75	0.88	1.50	1.25	0.88	0.93
3/4	5.12	1.00	1.75	1.38	1.00	1.14
1	5.88	1.12	2.06	1.62	1.12	1.41
1-1/4	6.25	1.12	2.50	1.62	1.19	1.75
1-1/2	7.00	1.25	2.75	1.75	1.25	1.99
2	8.50	1.50	4.12	2.25	1.50	2.50
2-1/2	9.62	1.62	4.88	2.50	1.88	3.00
3	9.50	1.50	5.00	2.12	1.62	3.63
4	11.50	1.75	6.25	2.75	1.88	4.63
5	13.75	2.00	7.50	3.12	2.12	5.69
6	15.00	2.19	9.25	3.38	2.25	6.75
8	18.50	2.50	11.75	4.00	2.50	8.75
10	21.50	2.75	14.50	4.25	2.81	10.88
12	24.00	3.12	16.50	4.62	3.00	12.94
14	25.25	3.38	17.75	5.12	3.25	14.19
16	27.75	3.50	20.00	5.25	3.38	16.19
18	31.00	4.00	22.25	6.00	3.50	18.19
20	33.75	4.25	24.50	6.25	3.62	20.19
24	41.00	5.50	29.50	8.00	4.00	24.19

900# Bolts Template

NPS	BCD Bolt Circle Dia.	BHD Bolt Hole Dia	BOLTS Number of Bolts	BD Dia. Of Bolt	SBL RF Stud Bolt Length (RF)	SBL RJ Stud Bolt Length (RJ)	MBL RF Machine Bolt Length (RF)
1/2	3.25	7/8	4	3/4	4.25	4.00	4.25
3/4	3.50	7/8	4	3/4	4.5	4.25	4.5
1	4.00	1	4	7/8	5	4.75	5
1-1/4	4.38	1	4	7/8	5	4.75	5
1-1/2	4.88	1-1/8	4	1	5.5	5.25	5.5
2	6.50	1	8	7/8	5.75	5.50	5.75
2-1/2	7.50	1-1/8	8	1	6.25	6.00	6.25
3	7.50	1	8	7/8	5.75	5.50	5.75
4	9.25	1-1/4	8	1-1/8	6.75	6.50	6.75
5	11.00	1-3/8	8	1-1/4	7.5	7.25	7.5
6	12.50	1-1/4	12	1-1/8	7.5	7.25	7.75
8	15.50	1-1/2	12	1-3/8	8.75	8.50	8.75
10	18.50	1-1/2	16	1-3/8	9.25	9.00	9.25
12	21.00	1-1/2	20	1-3/8	10	9.75	10
14	22.00	1-5/8	20	1-1/2	10.75	10.50	11
16	24.25	1-3/4	20	1-5/8	11.25	11.00	11.5
18	27.00	2	20	1-7/8	12.75	12.50	13.25
20	29.50	2-1/8	20	2	13.75	13.50	14.25
24	35.50	2-5/8	20	2-1/2	17.25	17.00	18

150# | 300# | 400# | 600# | 900# | 1500# | 2500#

1500# Threaded Flange Dimensions as per ASME B16.5

1500# Flange Body Dimensions

NPS	O Flange OD	tf Flange Thickness	X Hub Dia.	Y Hub Length	T Thread Length	Q (Min.) Counter Bore
1/2	4.75	0.88	1.50	1.25	0.88	0.93
3/4	5.12	1.00	1.75	1.38	1.00	1.14
1	5.88	1.12	2.06	1.62	1.12	1.41
1-1/4	6.25	1.12	2.50	1.62	1.19	1.75
1-1/2	7.00	1.25	2.75	1.75	1.25	1.99
2	8.50	1.50	4.12	2.25	1.50	2.50
2-1/2	9.62	1.62	4.88	2.50	1.88	3.00

1500# Bolts Template

NPS	BCD Bolt Circle Dia.	BHD Bolt Hole Dia	BOLTS Number of Bolts	BD Dia. Of Bolt	SBL RF Stud Bolt Length (RF)	SBL RJ Stud Bolt Length (RJ)	MBL RF Machine Bolt Length (RF)
1/2	3.25	7/8	4	3/4	4.25	4.00	4.25
3/4	3.50	7/8	4	3/4	4.5	4.25	4.5
1	4.00	1	4	7/8	5	4.75	5
1-1/4	4.38	1	4	7/8	5	4.75	5
1-1/2	4.88	1-1/8	4	1	5.5	5.25	5.5
2	6.50	1	8	7/8	5.75	5.50	5.75
2-1/2	7.50	1-1/8	8	1	6.25	6.00	6.25

150# | 300# | 400# | 600# | 900# | 1500# | 2500#

2500# Threaded Flange Dimensions as per ASME B16.5

2500# Flange Body Dimensions

NPS	O Flange OD	tf Flange Thickness	X Hub Dia.	Y Hub Length	T Thread Length	Q (Min.) Counter Bore
1/2	5.25	1.19	1.69	1.56	1.12	0.93
3/4	5.50	1.25	2.00	1.69	1.25	1.14
1	6.25	1.38	2.25	1.88	1.38	1.41
1-1/4	7.25	1.50	2.88	2.06	1.50	1.75
1-1/2	8.00	1.75	3.12	2.38	1.75	1.99
2	9.25	2.00	3.75	2.75	2.00	2.50
2-1/2	10.50	2.25	4.50	3.12	2.25	3.00

2500# Bolts Template

NPS	BCD Bolt Circle Dia.	BHD Bolt Hole Dia	BOLTS Number of Bolts	BD Dia. Of Bolt	SBL RF Stud Bolt Length (RF)	SBL RJ Stud Bolt Length (RJ)	MBL RF Machine Bolt Length (RF)
1/2	3.50	7/8	4	3/4	4.75	4.50	4.75
3/4	3.75	7/8	4	3/4	5	4.75	5
1	4.25	1	4	7/8	5.5	5.25	5.5
1-1/4	5.12	1-1/8	4	1	6	5.75	6
1-1/2	5.75	1-1/4	4	1-1/8	6.75	6.50	6.75
2	6.75	1-1/8	8	1	7	6.75	7
2-1/2	7.75	1-1/4	8	1-1/8	7.75	7.50	8
